Search

Use the Search page to find recordings, events, and sessions across every device in your organization.

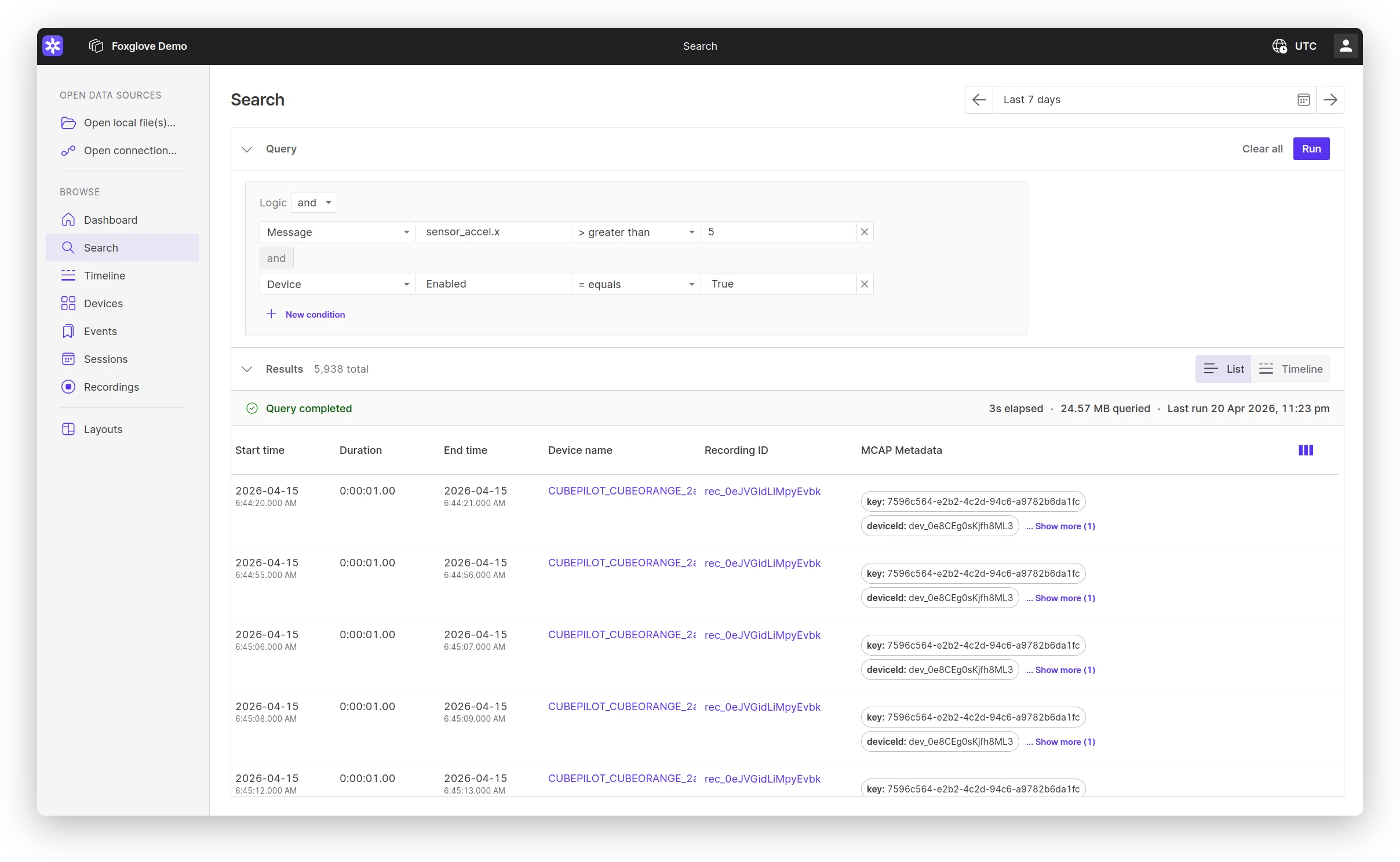

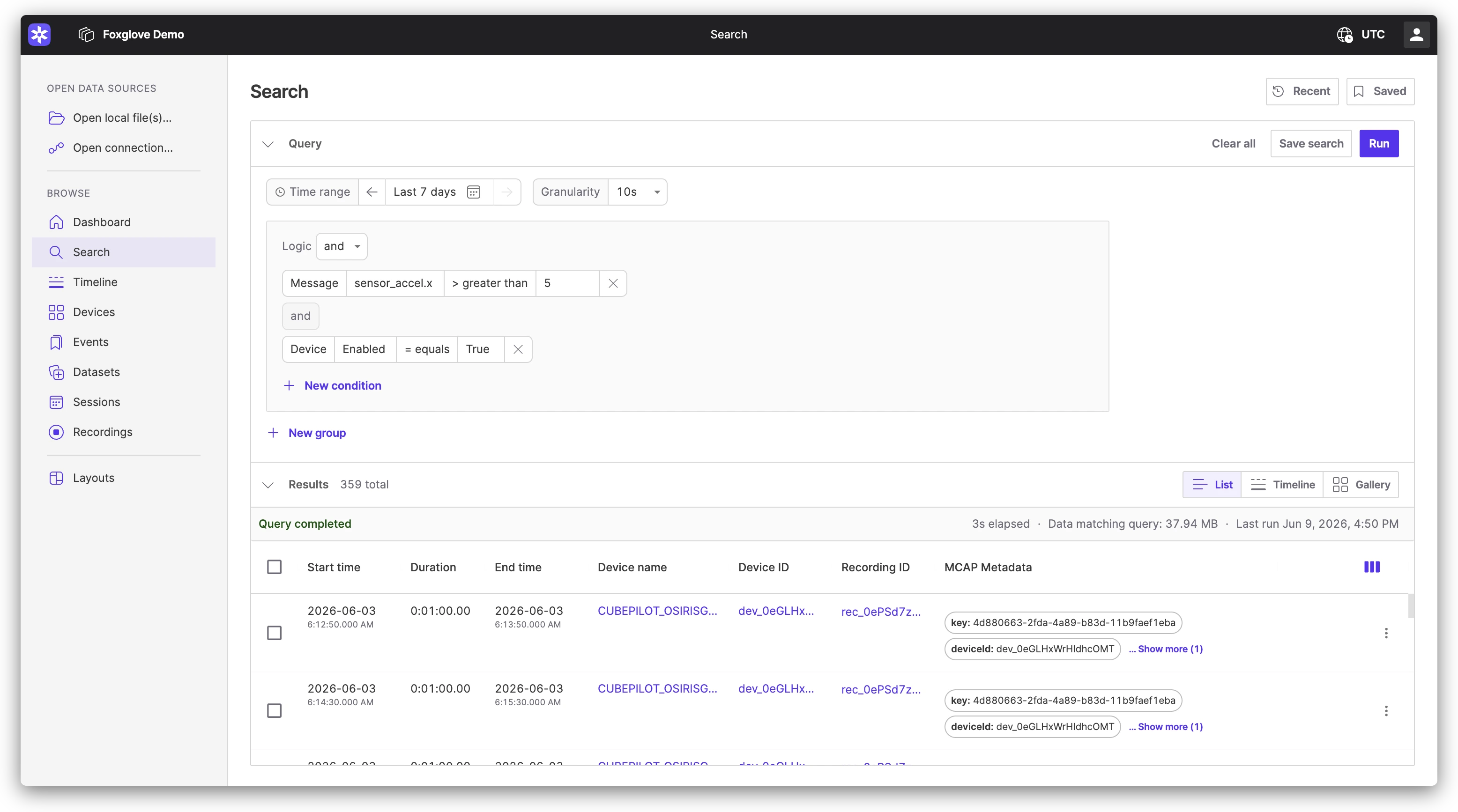

How search works

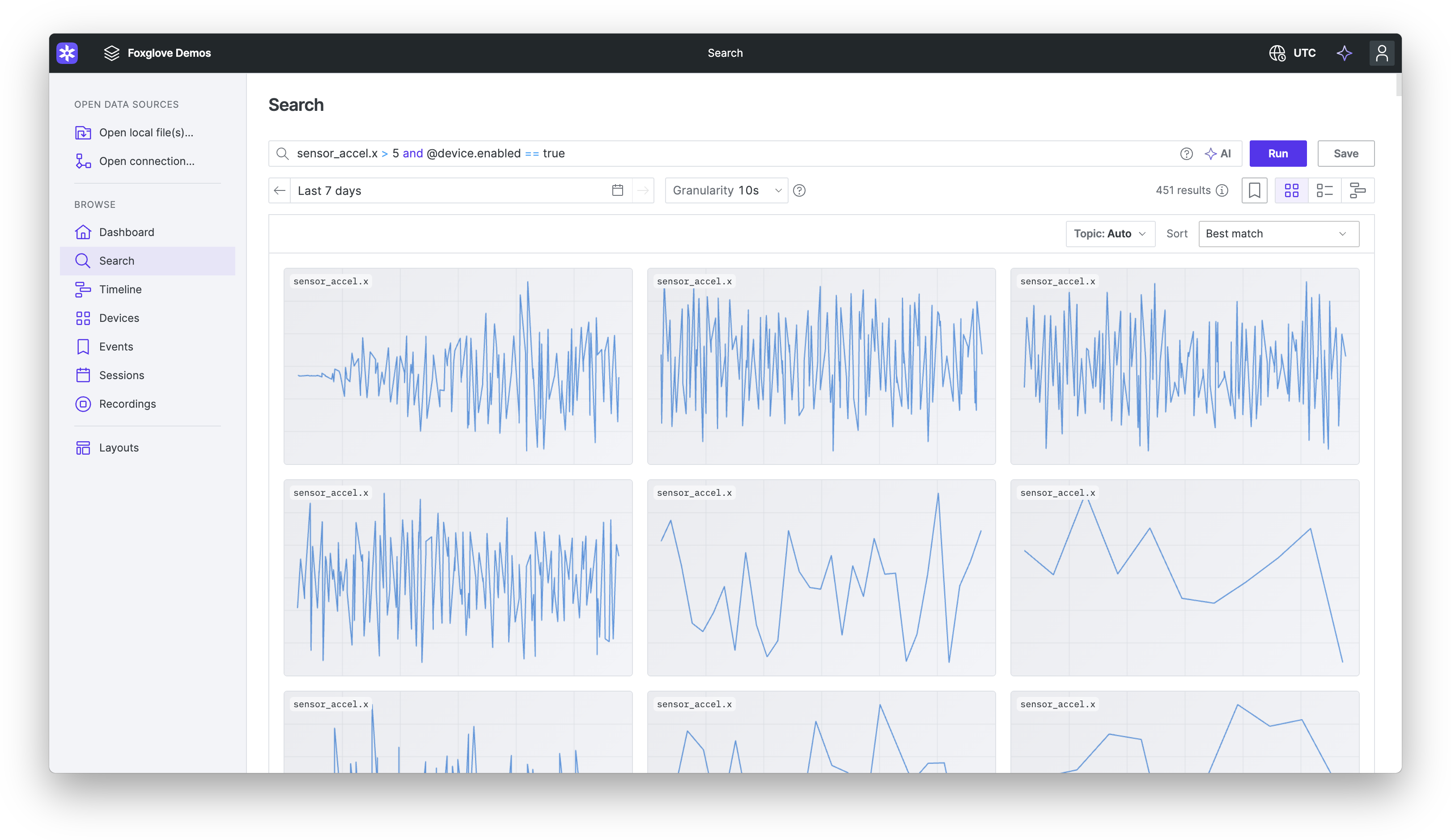

Run a query from the Search page to find recordings, events, and sessions across your organization. Each query combines one or more conditions on fields like device, time range, event type, topic, or metadata.

• Gallery view: Browse previews before opening results.

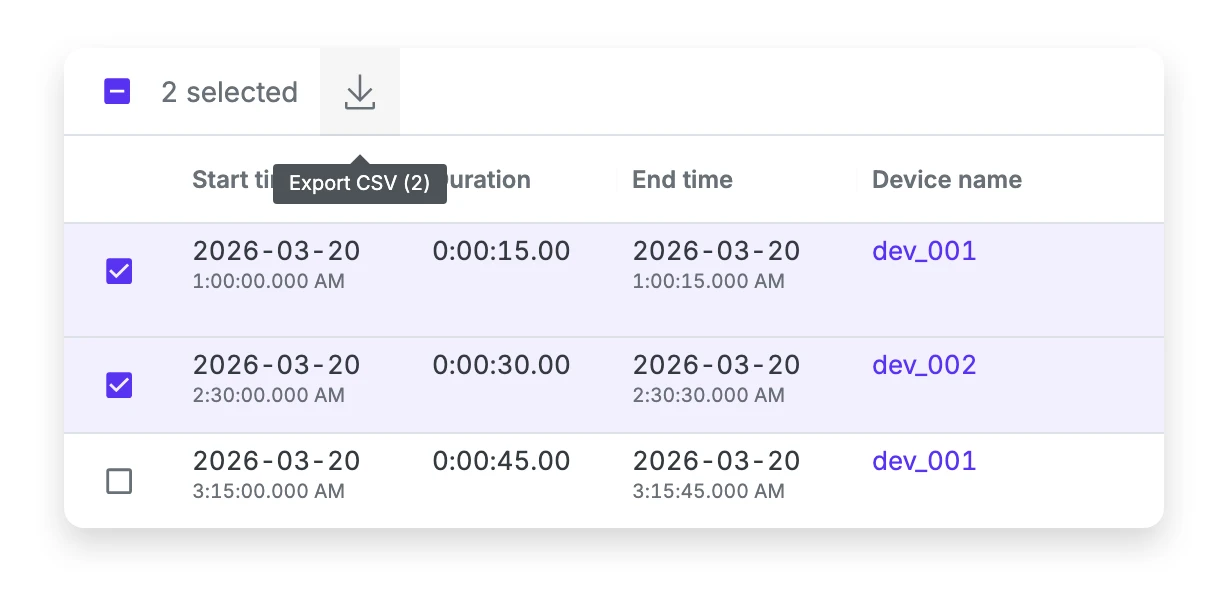

• List view: Results in a sortable table.
• Timeline view: Results plotted across time.

Open a result to visualize the matching data.

For self-hosted Primary Sites, scans of recording contents run on the query service in your Primary Site, so message contents and attachments never leave your infrastructure. See the Primary Site FAQ for more detail.

Building a query

A query is made up of one or more conditions. Each condition names a field (such as device ID, event type, or a metadata key), an operator, and a value:

@device.name == husky

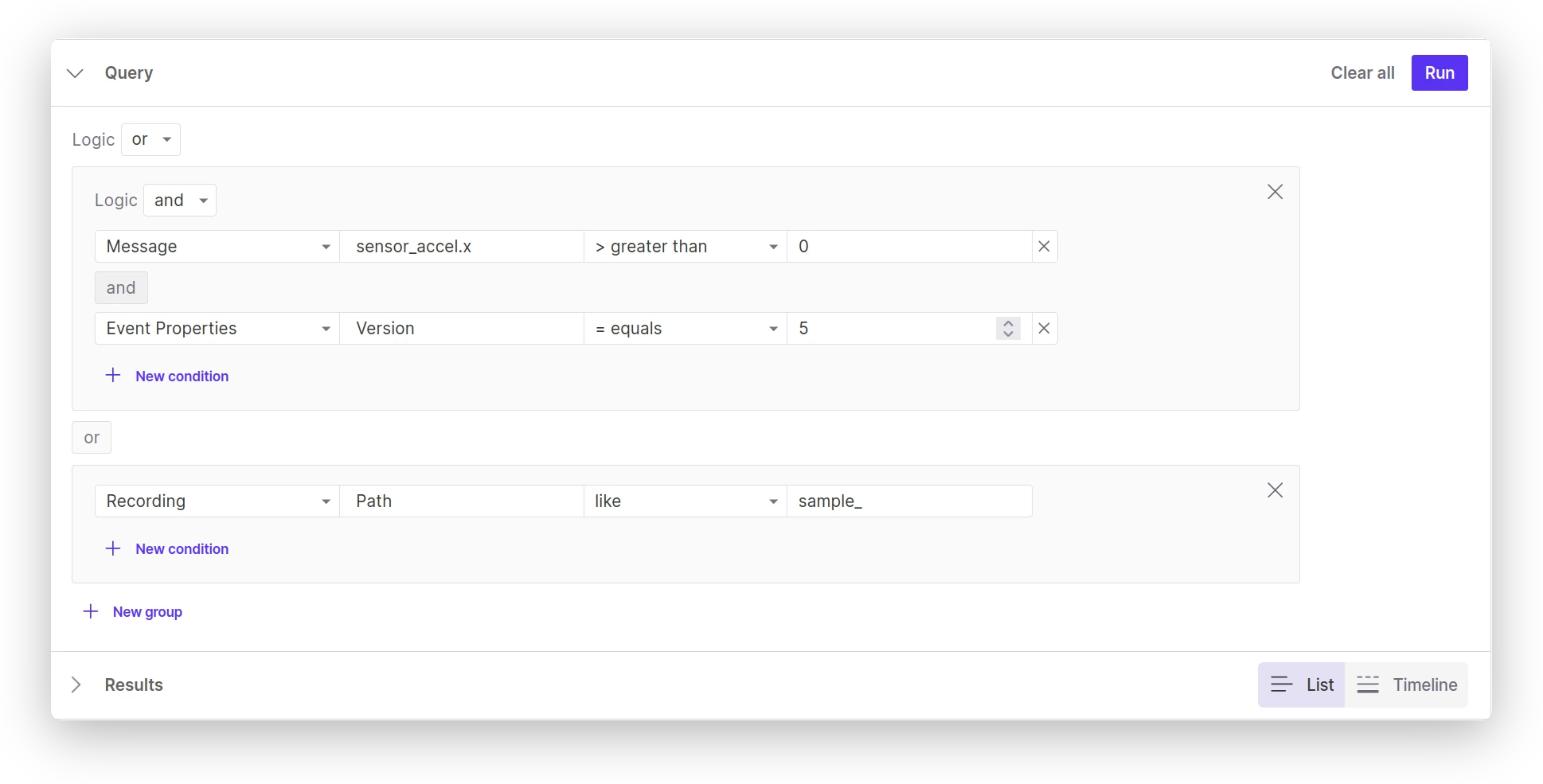

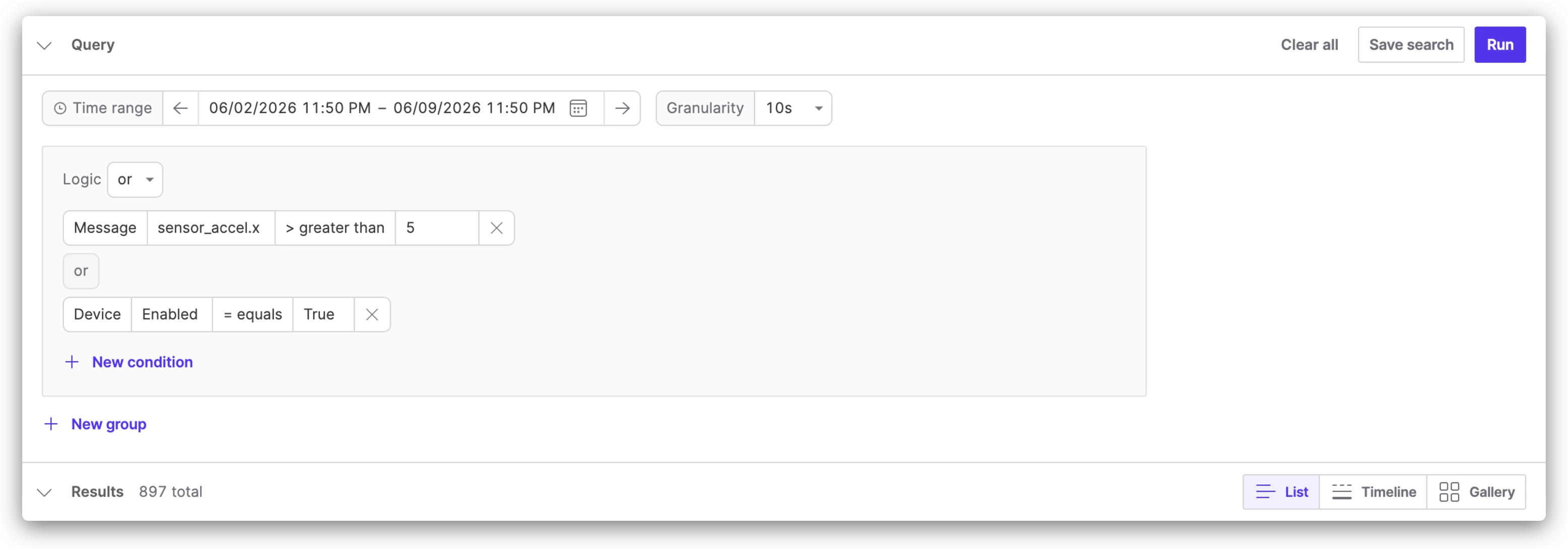

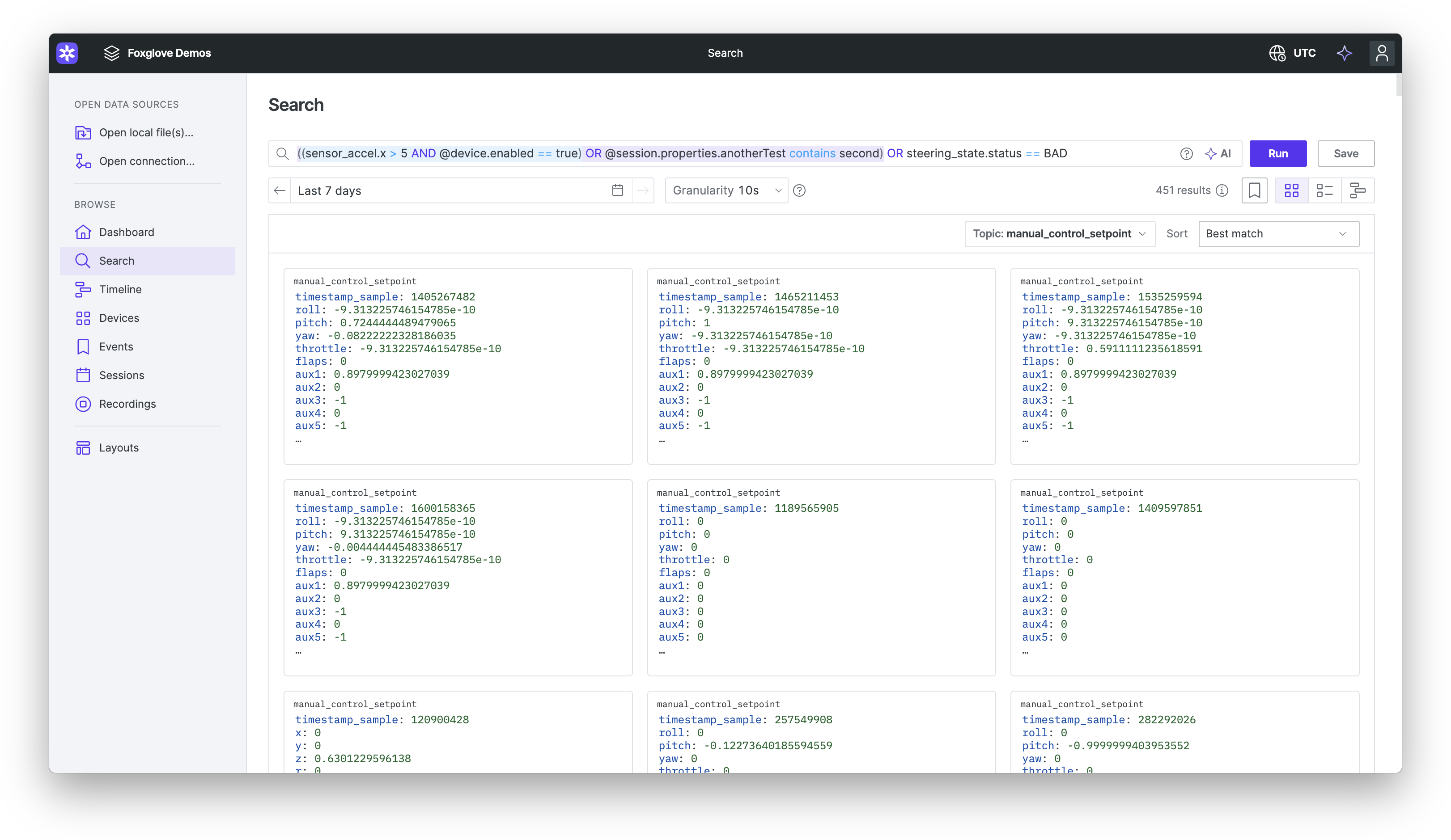

Conditions are joined with and or or, and parentheses group them:

@event.properties.severity > 3 and /diagnostics.level > 1
(@device.name == husky or @device.name == spot) and @recording.metadata.mission.site == warehouse-3

Press Enter or click Run to execute the query. Use the view toggle to browse results in Gallery, List, or Timeline.

The search bar helps as you type:

• Suggestions complete fields, operators, values, topics, and expressions. Use the arrow keys or Tab to move through them, and Enter to accept one.

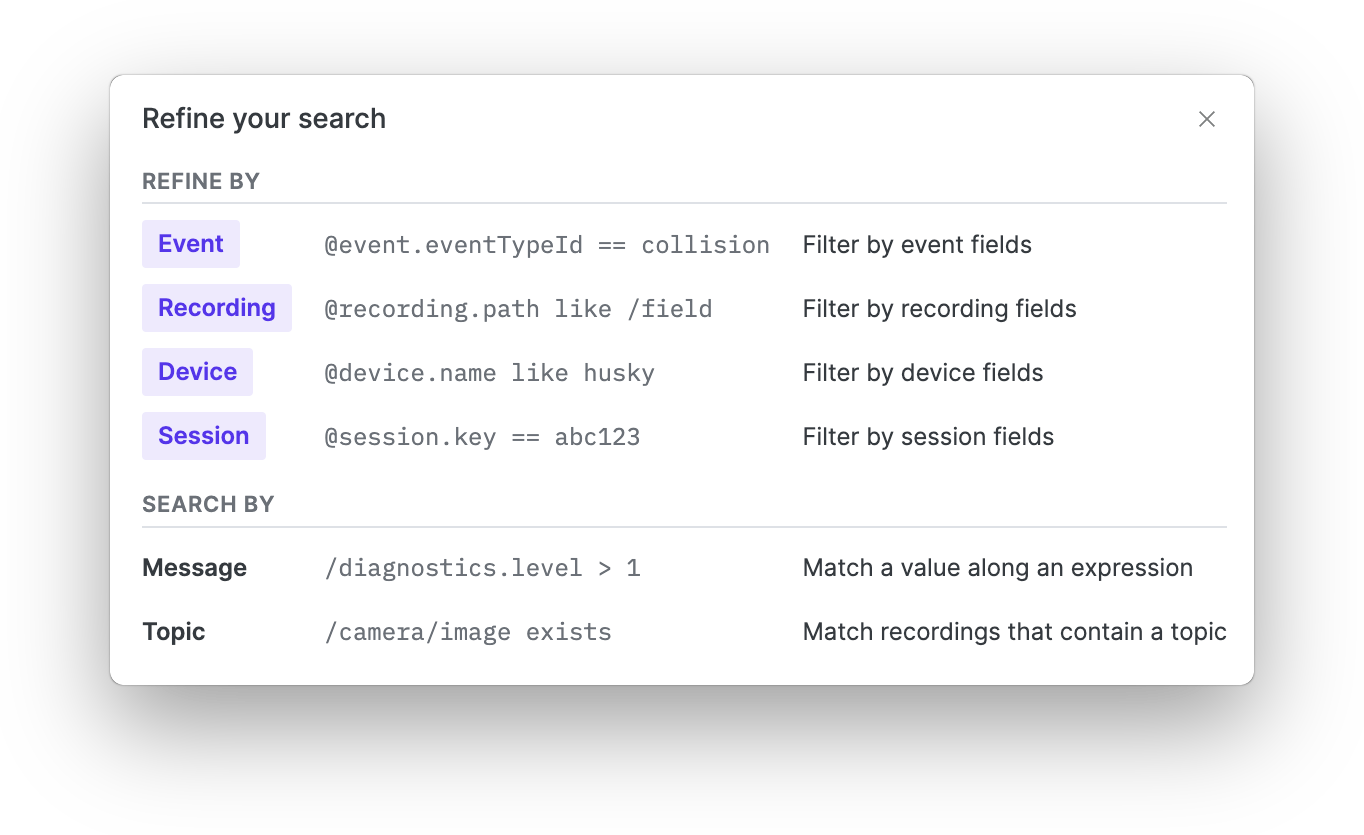

• Refine your search lists the available fields and condition types with examples, and inserts the one you click. Open it from the question mark button in the bar, or with Ctrl + / (Windows and Linux) or Cmd + / (macOS).

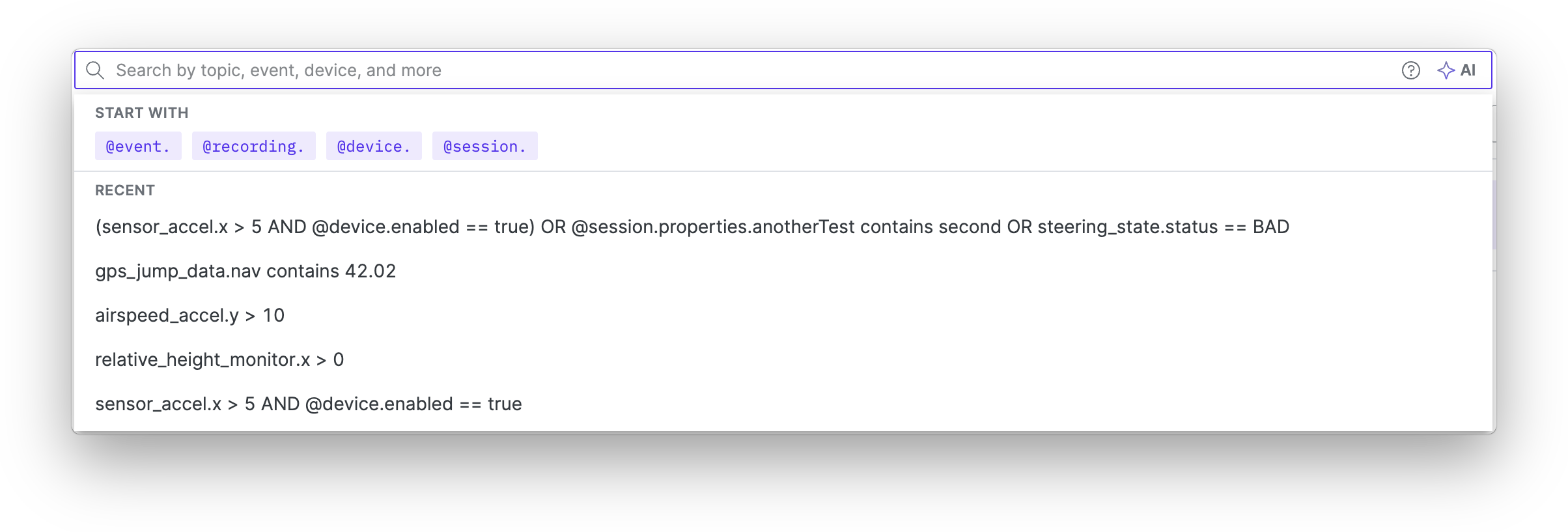

• With an empty bar, the suggestions include starting points and your recent searches.
• Foxglove underlines anything it can't run — a syntax error, an unknown field, a topic that doesn't exist, a field path missing from the topic's schema. Hover over an underline to see why. "Run" stays disabled until the query is valid.

Syntax

• Fields on recordings, events, devices, and sessions start with @ (for example, @device.name).
• Visual searches are wrapped in visual("...") (for example, visual("fire truck")).
• Anything else reads as a topic name, optionally followed by a field path (for example, /gps.latitude). Write the topic exactly as it appears in the recording — adding a leading / to a topic that doesn't have one searches a different topic.
• Every condition needs a field and an operator. A term on its own isn't a full-text search, so husky reads as an unfinished condition rather than a word to look for.
• Spaces separate an operator from what it compares. @device.name == husky runs; @device.name==husky doesn't.
• Equality is ==. A single = isn't an operator.
• and, or, and the word operators aren't case sensitive — AND behaves like and.
• and and or can be mixed, and and binds tighter, as in Python — a and b or c runs as (a and b) or c. Parenthesize for the other grouping: (a or b) and c.
• Parentheses nest to any depth.
• A query restored from a link or a saved search is rebuilt from the query Foxglove stored, so it comes back with uppercase connectors and the parentheses that precedence implies: a and b or c reads back as (a AND b) OR c.
• Quote a value that contains spaces or any of the characters (, ), ", =, <, >, !, \ (for example, @recording.metadata.mission.driver == "Sam Chen"). Inside a quoted value, escape a quote or a backslash with a leading backslash — \" and \\.
• Quoting works the same way in a field name, one segment at a time: "my camera".width > 100 compares the width field on the my camera topic. Quote a name that collides with a word the query reserves — and, or, like, contains, not-contains, and exists — for the same reason: "exists" exists.
• exists takes no value.

Searchable fields

You can search across several categories of fields:

Category	Examples	Description
Visual search	visual("...") (for example, visual("fire truck"))	An object or scene of interest visible in your recording data
Recording	@recording.id, @recording.key, @recording.deviceId, @recording.deviceName, @recording.path	Built-in fields on every recording
Recording metadata	@recording.metadata.<record>.<key>, for any key from your recording metadata	String values attached to recordings
Event	@event.id, @event.eventTypeId, @event.deviceId	Built-in fields on events
Event properties	@event.properties.<key>, for any custom property defined for events	User-defined properties
Event metadata	@event.properties.<key>, for any key from your event metadata	String key-value pairs on events
Device	@device.id, @device.name, @device.enabled	Built-in fields on devices
Device properties	@device.properties.<key>, for any custom property defined for devices	User-defined properties
Session	@session.id, @session.key, @session.deviceId	Built-in fields on sessions
Session properties	@session.properties.<key>, for any custom property defined for sessions	User-defined properties
Message	Topic and field path (for example, /gps.latitude)	Values decoded from message contents in your recordings
Topic	Topic name (for example, /gps)	Recordings where the topic exists — answered from file-level metadata, no message decoding

A recording's path is its name, so @recording.path like %front-camera% finds recordings whose name contains front-camera. Event metadata keys share the @event.properties. prefix with event custom properties.

Recording metadata keys carry the name of the MCAP metadata record that holds them, so a site key in a mission record is @recording.metadata.mission.site. Autocomplete suggests the full path.

Refine your search lists the same categories in the app, each with an example you can insert:

note

Event types are stored by ID. Suggestions show each event type's name and insert its ID, so pick the event type from the dropdown rather than typing its name.

Operators

The operators available for a condition depend on the field's data type:

Data type	Operators	Used by
String	==, !=, like, exists	Most built-in fields, metadata keys, string message fields
Number	==, !=, >, >=, <, <=, exists	Numeric custom properties, message fields
Boolean	==, !=, exists	Boolean fields (for example, @device.enabled), boolean message fields
Enum	==, !=, exists	Event type, single-select custom properties
Multi-select	contains, not-contains	Multi-select custom properties

like matches a pattern in which % stands for any sequence of characters (for example, @recording.path like %highway%). exists matches any non-null value, so an empty string, 0, and false all match.

For message field conditions, Foxglove infers the field's data type from the topic's schema and filters operators accordingly.

Message field search

Message field conditions let you search across the decoded contents of your recordings. Specify a topic and field path using FoxQL (for example, /gps.latitude, /diagnostics.status).

Supported field types

The query engine can search message fields that resolve to a primitive scalar leaf or an array of primitives. Searchable message fields resolve to one of:

• Numeric — integers and floats of any width (int32, float64, uint8, etc.)
• Boolean — bool
• String — string
• Arrays of the above — for example, float64[], string[]

Unsupported field types

The following field types are not searchable. Autocomplete only suggests supported leaf fields, so these types generally do not appear as suggestions:

• Nested messages — compound types like geometry_msgs/Pose or a protobuf sub-message
• Arrays of messages — lists of non-primitive types
• Maps — key-value map fields

Querying nested fields

To search a scalar value inside a nested message, use dot notation to drill down to the leaf field:

# Given a ROS message type:
#   geometry_msgs/PoseStamped
#     std_msgs/Header header
#     geometry_msgs/Pose pose
#       geometry_msgs/Point position
#         float64 x
#         float64 y
#         float64 z

# ✅ Valid — targets a scalar leaf:
/robot_pose.pose.position.x

# ❌ Invalid — targets a nested message, not a scalar:
/robot_pose.pose
/robot_pose.pose.position

Arrays and repeated fields

Arrays of primitive scalars (float64[], repeated double in protobuf, sequence<double> in IDL) are searchable. You can select the bare array path (for example, /topic.values) or use a slice (/topic.values[:]) — the query engine matches if any element in the array satisfies the condition. An index narrows that to one element (/topic.values[0]).

You can also use a slice to reach scalar leaves inside an array of messages (for example, /topic.items[:].value matches if any element's value satisfies the condition). You cannot condition on an array of messages itself, only on scalar leaves within it.

Filters and functions

A message field condition is a path to a value, so the FoxQL syntax that filters or transforms messages isn't part of it:

• Filters don't parse. Instead of /diagnostics.status[:]{hardware_id=="motor"}.message == OK, write the filter as its own condition: /diagnostics.status[:].hardware_id == motor and /diagnostics.status[:].message == OK. Each condition then matches when any element satisfies it, which is how View in Search rewrites a filtered path.
• Functions are rejected rather than dropped, so a path ending in .@abs is underlined with "Search cannot apply .@abs". Compare the raw field instead.

Supported schema encodings

Message predicates work with all schema encodings supported by Foxglove:

Message encoding	Schema encodings
protobuf	protobuf
ros1	ros1msg
cdr (ROS 2)	ros2msg, ros2idl, omgidl
json	jsonschema
flatbuffer	flatbuffer

Topic field search

Topic field conditions answer "does this topic appear in any recording?" without decoding message contents. Use them when you only need to filter by topic presence — the query engine reads file-level metadata only, so these searches are dramatically faster than Message field searches that scan chunk bytes.

Topic fields support only the exists operator and a bare topic name (for example, /gps); field-path suffixes (/gps.latitude) belong on a Message field.

Visual search Beta

Visual search lets you search for objects or scenes of interest across the image and video topics in your recordings. Visual searches can be combined with other query fields for advanced filtering.

Each query supports one visual search prompt. When you perform a visual search, you provide a natural language text prompt describing what you're looking for.

To request access to visual search, contact us.

Examples of visual search prompts

You can run a visual search by describing objects or scenes of interest, for example:

• Rainy street at night
• Fire truck
• Water droplets on the camera lens
• Traffic cones
• Red spatula

You can also incorporate multiple objects or spatial relationships in your prompt, for example:

• A construction worker in a green vest next to an excavator
• A traffic cone next to a trench
• Folded laundry on top of a bed
• Green blocks on a table

Topics

Visual search only returns results for topics that have been indexed for it. An organization admin can configure which topics are indexed for visual search on a per-project basis.

New recordings that contain a configured topic are indexed automatically. To index recordings ingested before a topic was configured, contact us.

Supported image and video schemas and encodings

Visual search indexing supports the following schemas, message encodings, and image/video formats:

Schema	Message encoding	Image/video formats
foxglove.CompressedImage	protobuf, flatbuffer	JPEG/JPG, PNG, WebP
foxglove.RawImage	protobuf, flatbuffer	RGB8, RGBA8, BGR8 (8UC3), BGRA8, Mono8 (8UC1), Mono16 (16UC1), 32FC1, YUV422/UYVY, YUV422_YUY2/YUYV, Bayer BGGR8, Bayer GBRG8, Bayer GRBG8, Bayer RGGB8
foxglove.CompressedVideo	protobuf	H.264, H.265
sensor_msgs/CompressedImage	ros1	JPEG/JPG, PNG, WebP
sensor_msgs/Image	ros1	RGB8, RGBA8, BGR8 (8UC3), BGRA8, Mono8 (8UC1), Mono16 (16UC1), 32FC1, YUV422/UYVY, YUV422_YUY2/YUYV, Bayer BGGR8, Bayer GBRG8, Bayer GRBG8, Bayer RGGB8
sensor_msgs/msg/CompressedImage	cdr (ROS 2)	JPEG/JPG, PNG, WebP
sensor_msgs/msg/Image	cdr (ROS 2)	RGB8, RGBA8, BGR8 (8UC3), BGRA8, Mono8 (8UC1), Mono16 (16UC1), 32FC1, YUV422/UYVY, YUV422_YUY2/YUYV, Bayer BGGR8, Bayer GBRG8, Bayer GRBG8, Bayer RGGB8

Making queries faster

Queries run faster when they scan fewer files. To speed up a slow search:

• Filter by device ID or device name so Foxglove only searches the devices you need.
• Reduce the time range.

Granularity

Foxglove groups matching message results into buckets to avoid noise from high-resolution topics. Each result row in the List and Timeline views represents one bucket: every message that matches your query within that bucket contributes to the same row.

The default granularity is 10 seconds. Use the Granularity dropdown next to the time range to pick a different bucket width — 250ms, 1s, 10s, 1m, 1h, or 1d. Smaller buckets give finer detail on dense data; larger buckets keep the result count manageable for sparse hits over long ranges.

Saving and reusing searches

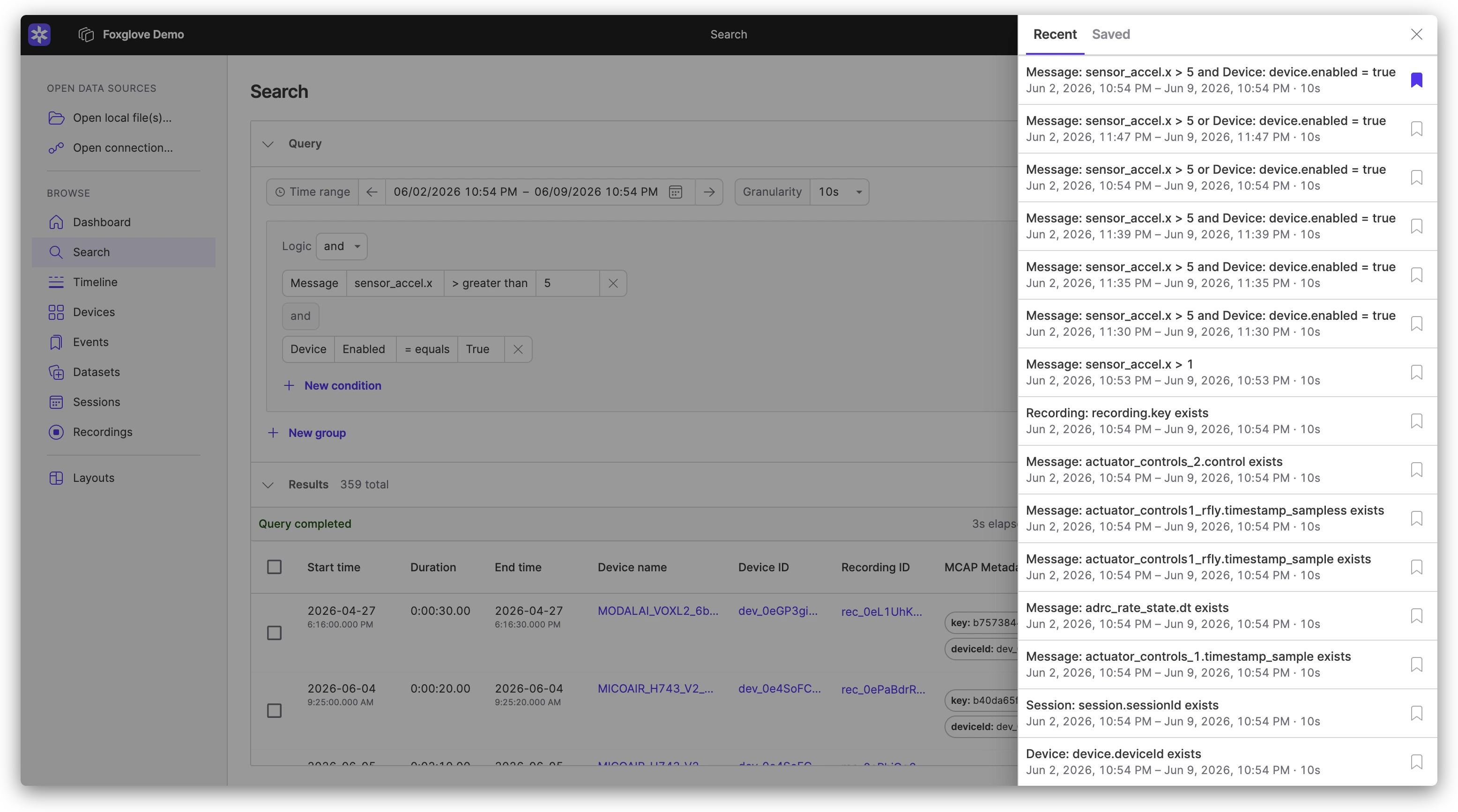

Once you've run a search, you can come back to it without retyping the query. Save the searches you want to keep or share with your team, then open them from the Saved searches panel — the bookmark button in the search bar.

Saving a search

Click "Save" in the search bar to save the search you've run. "Save" becomes available once a search finishes, and turns off again if you edit the query without re-running it. Each saved search has:

• Name — required, up to 32 characters.
• Description — optional, up to 200 characters.
• Visibility — who can see it:
  • Only me — the saved search is private to you.
  • Everyone in this project — everyone with access to the Project can see and run it.

Saved searches belong to a Project.

note

Visibility is set when you save and can't be changed afterward. To change it, delete the saved search and save it again.

Running a saved search

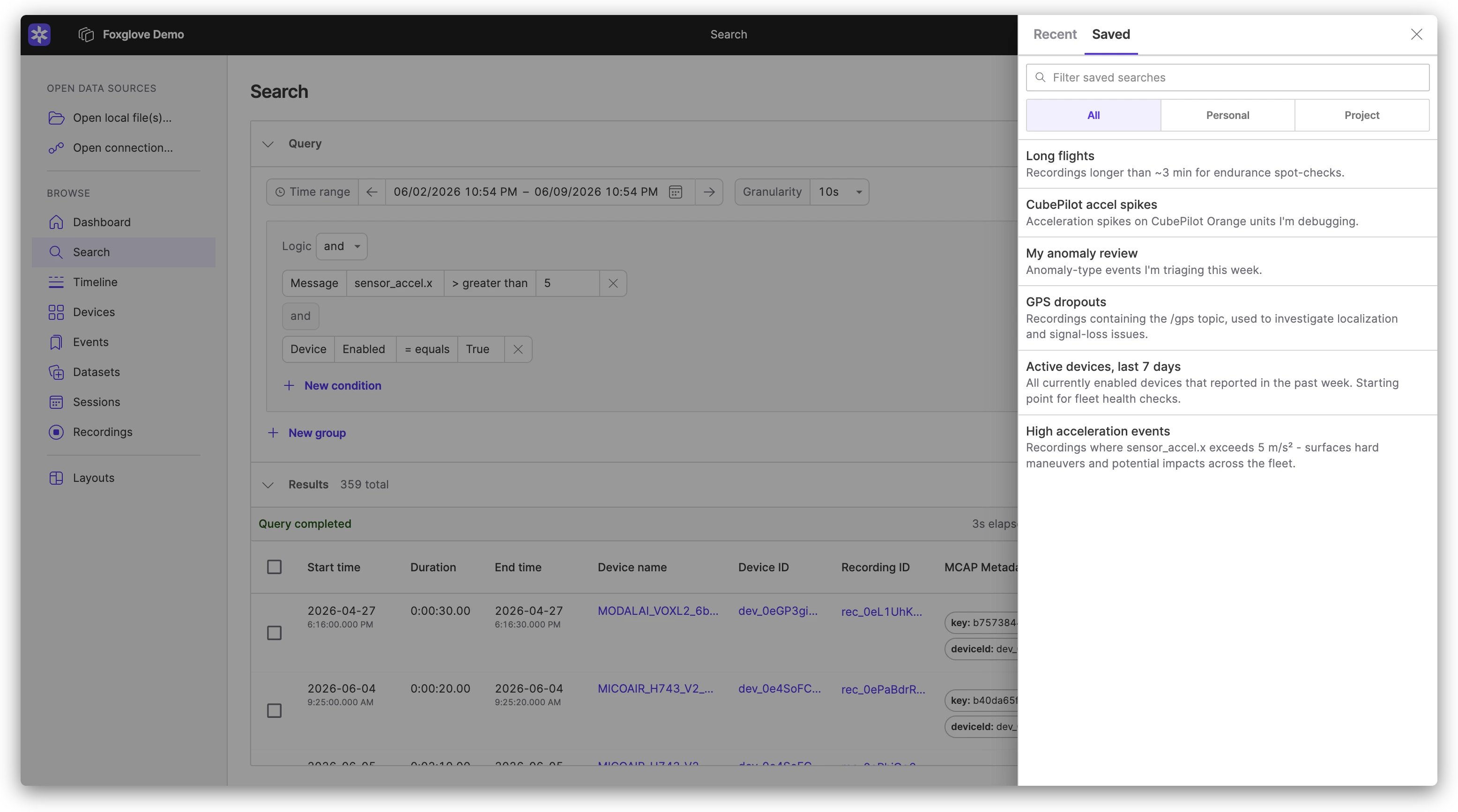

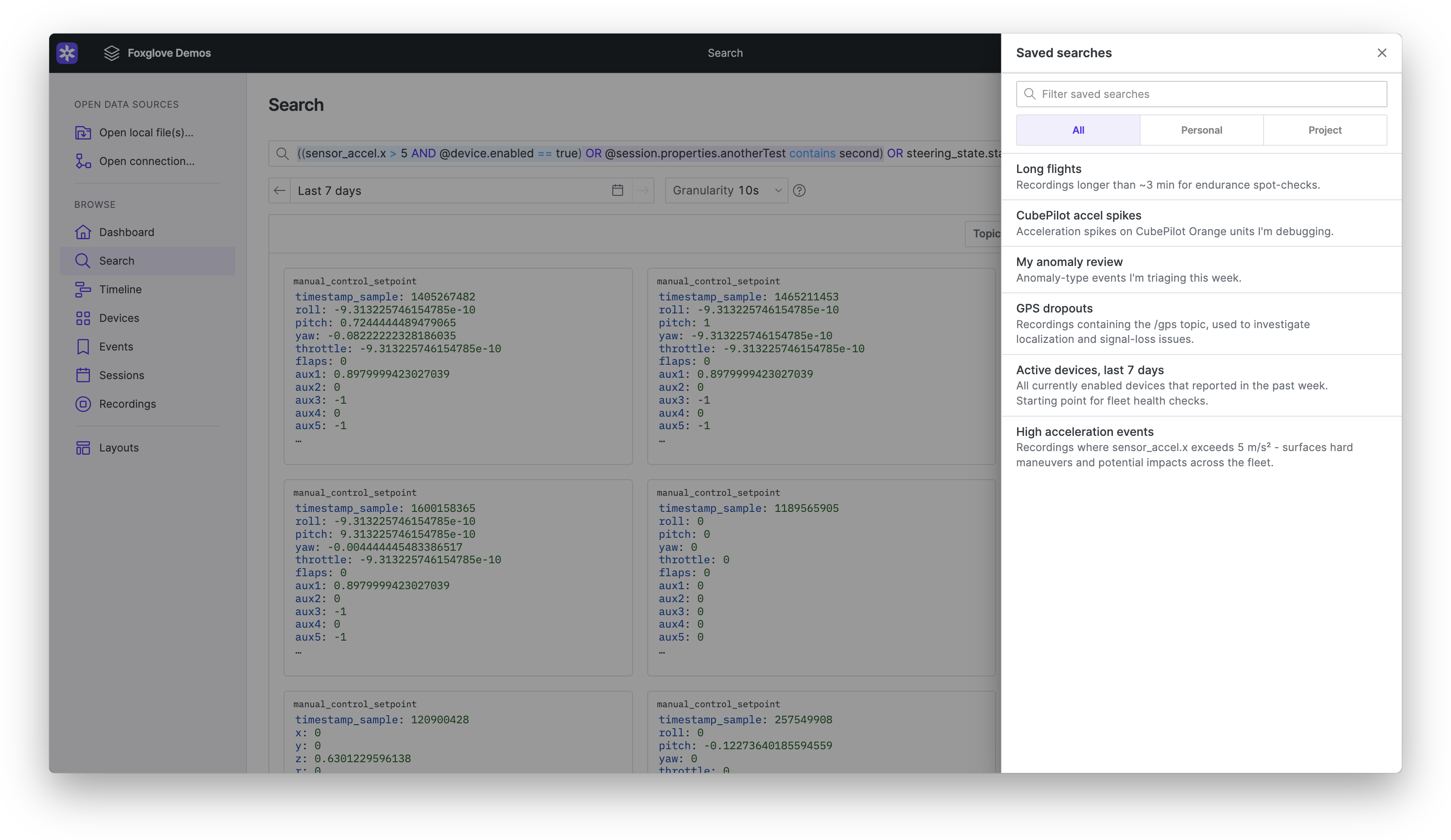

Open the Saved searches panel to browse your saved searches. Use the All, Personal, and Project filters or the filter box to narrow the list.

Click a saved search to load its query into the search bar and run it.

Editing and deleting saved searches

Click the edit icon on a saved search to change its name or description, or to delete it. You can edit or delete a saved search if you created it, or if you're an organization admin. The visibility and the query itself can't be changed after a search is saved.

Visualizing a match

From the Search page, open a result to visualize its recording with your query attached. In Gallery, select a card and click Visualize. In List, click a row; in Timeline, click a result.

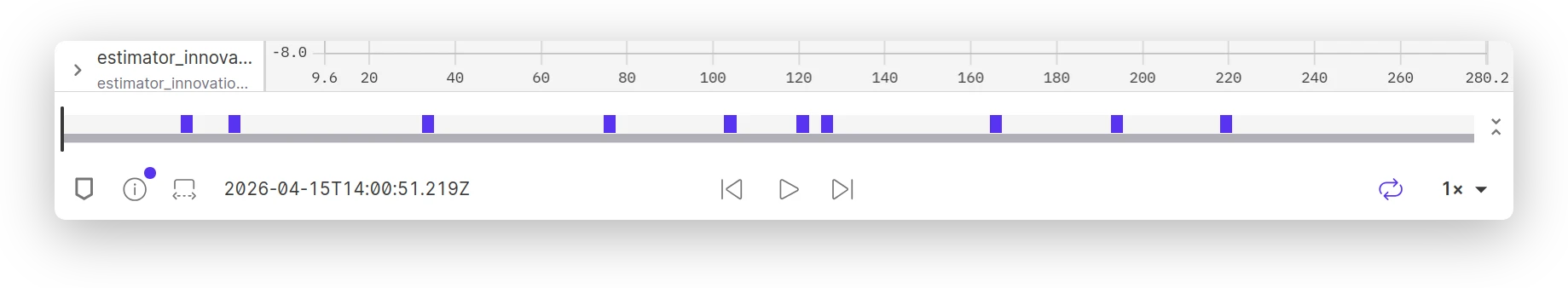

Your matches appear above the playback bar, similar to events. Hover over a match to see its details.

Starting a search from a panel

The Raw Messages panel can start a search from the message it's showing. "View in Search" appears in two places:

• Hover over a value in the message tree and click the search icon to search for that field and value.
• Click the search icon in the message header to search on the panel's path. If the path resolves to a single field, the query matches that field's value; otherwise it matches messages where the path has any value.

Either action opens the Search page with the query already built and the time range set to the recording's start and end. Edit the query before you run it — widen the time range, add a device condition, or relax the value — to find the same pattern across other recordings.

The hover icon appears only for values the query engine can search: a message field that resolves to a primitive scalar or an array of primitives. Hovering a nested message, a map, or an array of messages shows no icon. If the path carries a filter, the filter becomes an extra condition in the query.

Search covers the recordings indexed in your organization, so a query started from a local file returns results only for data you've also imported into Foxglove.
